Autonomous DriveMod Tugger

Autonomously & Safely Tug Up To 12,000 lbs.

Deploy a fully autonomous tugger train to automate repetitive hauling, drive your manufacturing forward, and get more done per shift with our robust and reliable self-driving tuggers.

With DriveMod, Your Tuggers —

Autonomously haul and tow thousands of pounds of heavy goods — indoors or out.

Leverage multiple, redundant, and intelligent layers of safety.

Can be remotely managed and monitored via the FMS or on-vehicle display.

Execute missions based on a variety of flexible, programmable skills — including "auto-unhitch".

Safely navigate sites without the need for special infrastructure.

Can be switched into manual mode and driven by a human.

Autonomous DriveMod Tugger

DriveMod Tuggers never take a vacation, don't make human errors, and always get the job done.

We've partnered with Motrec, a trusted industrial vehicle manufacturer, to integrate DriveMod into their fleet of heavy-duty tuggers to transform them into intelligent self-driving robots. Our DriveMod Tugger does not require special infrastructure or the installation of magnetic strips, meaning a quicker and more efficient deployment.

Speak To Sales View Case Study

Sean Stetson

VP of Engineering, Cyngn

"DriveMod turns every shift into a productivity powerhouse. On average, companies that use DriveMod Tuggers have seen a 33% increase in productivity and a 64% reduction in labor costs."

drivemod 3d lidar people

Advanced Pedestrian Tracking

DriveMod safely navigates around obstacles while protecting workers and pedestrians through next-gen 3D lidar that predicts movement patterns.

safety lights

Safety Lights & Audio Cues

Color-coded LEDs communicate vehicle status and intent. Beeps and horn honks indicate when the vehicle is turning, departing, or arriving at a stop.

tugger safety

Emergency Stop & Manual Override

Tuggers are fitted with e-stop buttons for immediate shutdown and when you need it, simply switch to manual mode for total flexibility.

Vehicle & Chassis

Dimensions

65" L x 30" W x 55" H (Vehicle)
18" L x 30" W (Deck)

Weight

1,250 ± 100 lbs

Brakes

Self-adjusting H.D. drum brake
Regenerative braking
Electromagnetic parking brake

Wheels

4.8x8 LRC pneumatic tires

Body

All-steel unibody construction

Performance

Speed

4.5 mph (Autonomous)
6 mph (Manual)

Towing Capacity

12,000 lbs (MT-160)
20,000 lbs (MT-340)

Load Capacity

500 lbs. (max)

Turning Radius

57" (MT-160)
59" (MT-340)

Min Aisle Width

55"

Battery System

Voltage

48V

Battery Runtime

8 hrs
(varies w/speed & load weight)

Charge Time

2.5 - 4 hrs (Lithium)
8 - 10 hrs (Standard)

Safety Suite

Emergency Stop

Multiple on-vehicle E-Stop buttons

Collision Avoidance

Virtual Bumper

Communication

LED color-coded safety lights
Automated audio cues

Sensor Suite & Connectivity

Cameras

RGB camera
TOF camera

Sensors

360° 3D lidars

Connectivity

802.11 Wi-Fi
Ethernet Port for Data Offload

Automation Interface

Human Machine Interface (HMI)

Autonomous Fleet Management System

Deploy Missions at the Touch of a Button

We enable multiple ways to direct and orchestrate your DriveMod fleet, allowing you to manage, monitor, and command your vehicles from anywhere.

Demo Our Fleet Management System

cyngn insight fms

On-Vehicle Display

The most common way to control the vehicle is from the vehicle itself. Our on-vehicle display enables teams to send vehicles to other stations, wait for work to get done, and switch into manual mode.

Fleet Management System

Operators can access advanced mission planning and workflow management capabilities from the cloud-based FMS.

Facility-Wide Tablets

Finally, you can set up tablets throughout your facility that work just like elevator buttons. Workers can press the "Call Vehicle" button and the vehicle will arrive in short order.

What Our Customers Are Saying

See Cyngn Autonomy in Action

Request a Demo

coats

Automotive Equipment Manufacturer

"Cyngn’s self-driving tugger was the perfect solution to support our strategy of advancing automation and incorporating scalable technology seamlessly into our operations at Coats. With its high load capacity, we can concentrate on increasing our ability to manage heavier components and bulk orders, driving greater efficiency, reducing costs, and accelerating delivery timelines."

Steve Bergmeyer | Continuous Improvement & Quality Manager

Plastics Manufacturer

"Cyngn’s DriveMod really unlocks the potential for us to increase throughput and decrease time to market from the manufacturing floor. Their vehicles enable us to concentrate on efficiency and we’re really excited to increase profitability, improve our service levels, and get to market faster than our competitors."

Joseph Peterson | GM & Plant Manager

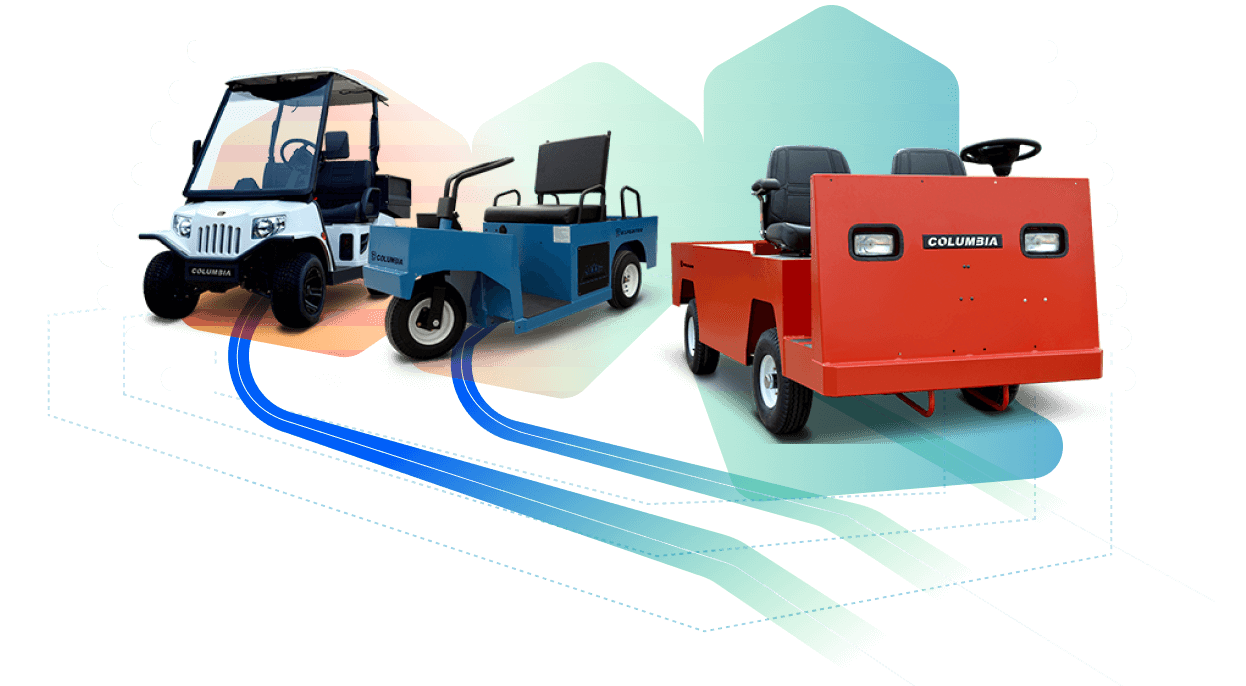

Self-Driving Industrial Vehicles

Our Autonomous DriveMod Fleet

In addition to our heavy-duty DriveMod Tugger, we deliver autonomous lifting capabilities with our DriveMod Forklift.

Want to offer AMRs / AGVs to your customers? Join our dealer network and unlock new revenue opportunities.

Autonomous DriveMod Forklift
