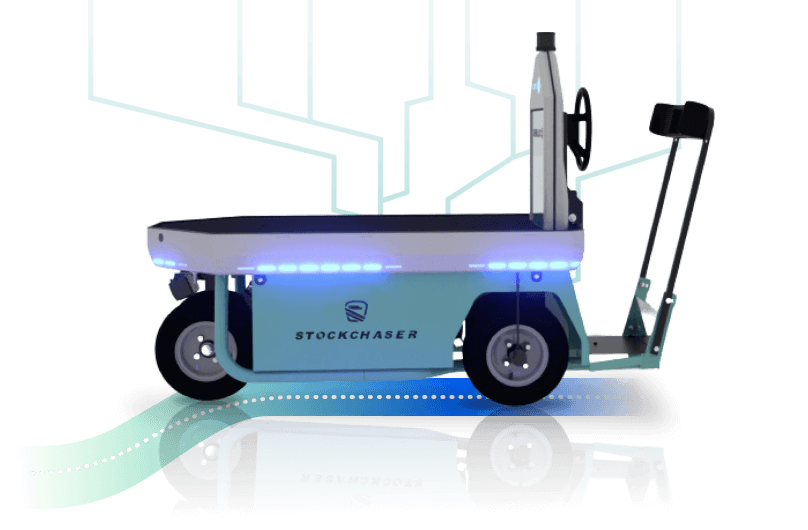

Autonomous DriveMod Tugger

The AMR That Goes When You Say Go

Haul up to 12,000 lbs with a heavy-duty DriveMod Tugger. Deploy missions remotely or from the vehicle, with nothing installed in your floor.

CONNECT WITH US

Trusted By

Predictable Delivery on Busy Floors

Your floor has forklifts, people, and carts moving in every direction. The Autonomous DriveMod Tugger keeps things moving, safely, through all of it.

Intelligent, Real-Time Decisions

Weighs thousands of possible scenarios and reacts 3x faster than a human operator.

Tow Up To 12,000 lbs, Unhitch Automatically

Executes heavy missions using flexible, programmable skills, like auto-unhitch.

Nothing Goes Into Your Floor

No guide wire, no tape, no magnets. Change the to route directly from the DriveMod software.

You Stay In Control

Dispatch from your desk or the on-vehicle touchscreen. Take the wheel whenever someone needs it.

Automation That Keeps You in Control

Most systems in this category run a fixed loop. Yours adjusts. Update the mission from your desk, then dispatch it remotely or from the vehicle touchscreen.

Control remotely or from the on-vehicle display.

Stack skills like "auto-unhitch" or "unload pallet" for advanced operation.

Batch upload dozens of workflows or plan one-off missions.

Trigger automatic commands, such as "go charge" or "return home".

360° Awareness to Keep Employees Safe

Our advanced, multi-layer safety and collision avoidance suite gives our autonomous vehicles eagle-eye awareness of their surroundings and allows them to react 3x faster than a human operator.

Advanced Pedestrian Tracking

Navigates Around Obstacles

Emergency & Override Controls

Virtual Bumper

See Safety Features

Vehicle & Chassis

Dimensions

65" L x 30" W x 55" H (Vehicle)
18" L x 30" W (Deck)

Weight

1,250 ± 100 lbs

Brakes

Self-adjusting H.D. drum brake
Regenerative braking
Electromagnetic parking brake

Wheels

4.8x8 LRC pneumatic tires

Body

All-steel unibody construction

Performance

Speed

4.5 mph (Autonomous)
6 mph (Manual)

Towing Capacity

12,000 lbs (MT-160)
20,000 lbs (MT-340)

Load Capacity

500 lbs (max)

Turning Radius

57" (MT-160)
59" (MT-340)

Min Aisle Width

55"

Battery System

Voltage

48V

Battery Runtime

8 hrs
(varies w/speed & load weight)

Charge Time

2.5 - 4 hrs (Lithium)
8 - 10 hrs (Standard)

Safety Suite

Emergency Stop

Multiple on-vehicle E-Stop buttons

Collision Avoidance

Virtual Bumper

Communication

LED color-coded safety lights
Automated audio cues

Sensor Suite & Connectivity

Cameras

RGB camera
TOF camera

Sensors

360° 3D lidars

Connectivity

802.11 Wi-Fi
Ethernet Port for Data Offload

EASYLAUNCH™ DEPLOYMENT

See If Your Route Qualifies

Quickly prove ROI without a large upfront investment. Start by automating a single repetitive workflow and scale when you're ready.

The routes we automate most:

Milk Run Replenishment: The supply loop your team drives every day.
Line-Side Delivery: Keep the line fed without pulling anyone off it.
End-of-Line to Staging: Finished goods keep moving after the line's done.
WIP Transfer Loop: The handoffs between cells that slow the floor down.

What's the purpose of the trip?

Restock several work areas from storage, over and over

Keep a production line fed with parts and materials

Move finished goods off the line to staging or the warehouse

Shuttle work-in-progress between cells or process steps

What can be seen on the route?

Tuggable carts

Palletized loads

Both carts and pallets

Other, a mix of stuff

Back

How often does this trip run?

Constantly — all shift long

Several times an hour

A handful of times a day

It varies day to day

Back

Biggest problem with this route?

People stuck hauling instead of higher-value work

Too much traffic on the floor

Inconsistent or unpredictable timing

It just eats hours

Back

Last step, get your results!

First Name*

Last Name*

Company Email*

Phone Number

Back

Calculating your results

Calculating your results

Calculating your results

Calculating your results

Cyngn's autonomous tugger was the perfect solution. It enhances our ability to manage heavier components, bulk orders, and reduces our costs. It's safe, secure, and efficient.

Steve Bergmeyer Continuous Improvement & Quality Manager, Coats Auto Equipment Manufacturer
